Title: 5 Tips for a Functional Basement 2 Bedroom Layout
Introduction
Designing a basement layout is one of the most challenging puzzles in interior design because you are fighting against fixed constraints. Unlike building a new home where you can move walls and raise ceilings, a basement forces you to work around immovable support columns, low ductwork, and existing utility lines. When you add the requirement of two bedrooms, the puzzle becomes significantly harder because you need to balance privacy with the limited natural light available.
I have walked through countless basements where the homeowner tried to cram too much into the floor plan, resulting in dark, hallway-heavy mazes that feel like underground bunkers. A successful two-bedroom basement needs to feel like a seamless extension of the main home, or a high-end apartment if it is intended as a rental suite. The goal is to make the occupants forget they are below grade the moment they step off the stairs.
We are going to walk through the specific layout strategies I use to keep these spaces bright, functional, and compliant with safety codes. If you are looking for visual inspiration, you can jump right to the Picture Gallery at the end of this post.
1. Build the Layout Around Egress Windows First
The biggest mistake homeowners make is drawing a floor plan on a napkin without looking at the exterior of the house. You cannot place a bedroom just anywhere in a basement. Every legal bedroom requires a secondary means of egress (escape) in case of fire, which usually means a window of a specific size and height.
If you are planning two bedrooms, you need two distinct egress points. This requirement will dictate roughly 50% of your layout before you even start thinking about where the TV goes. In most US jurisdictions, the window sill must be no higher than 44 inches from the floor, and the net clear opening must be at least 5.7 square feet.
If your basement currently has small “hopper” windows near the ceiling, you have to budget for cutting the concrete foundation to install larger windows. This is actually a design opportunity. By cutting the concrete, you bring in massive amounts of natural light, which is the number one factor in making a basement feel livable.
Designer’s Note: The Window Well Reality
In a recent project, a client wanted the bedrooms on the north side of the basement because it was quieter. However, the exterior grade on that side was concrete patio. Cutting egress wells there would have tripled the budget. We moved the bedrooms to the east side where there was soft landscaping. Always check the exterior obstacles (AC units, patios, property lines) before finalizing the interior bedroom walls.
Common Mistakes + Fixes
Mistake: Placing bedrooms in the center of the basement and relying on a door to an adjacent room for egress.
Fix: This is a code violation and a safety hazard. If you cannot add a window, that room is an office or a den, not a bedroom. Be honest with the labeling of your rooms.
2. Centralize the Living Space to Eliminate Hallways
In a standard 1,000 to 1,200 square foot basement, hallways are a waste of precious real estate. They are dark, narrow, and serve no purpose other than transit. When designing for two bedrooms, the most efficient layout is almost always a “split bedroom” design with a central open-concept living area.
Imagine the living room, dining area, and kitchen (or kitchenette) located in the center of the footprint. Bedroom A is on the left side, and Bedroom B is on the right side. This setup eliminates the need for a long corridor to access the rooms. It also provides immediate privacy between the two bedrooms, which is crucial if the occupants are roommates or siblings.
This layout also helps with lighting. Since the bedrooms usually hog the exterior windows, the central living space can be dark. By using double doors or frosted glass doors for the bedrooms, you can allow borrowed light from the bedroom windows to spill into the central living area during the day.
What I’d Do in a Real Project
- I would position the bathroom off the central living area, rather than making it an en-suite to one bedroom. This allows guests to use it without entering a private room.
- I would verify that the living area is at least 12 feet wide. Anything narrower than 10 feet feels like a wide hallway rather than a room.
- I would use the same flooring throughout the bedrooms and living area to create visual continuity. A continuous run of Luxury Vinyl Plank (LVP) makes the footprint feel 20% larger.
3. Master the “Mechanicals Tetris”
The furnace, water heater, and sump pump are the villains of basement design. They are ugly, noisy, and usually sitting exactly where you want to put a wall. Moving a furnace is expensive, often costing thousands of dollars, so you usually have to design around them.
The trick is to bundle these mechanicals into a dedicated utility room that also serves as a sound buffer. In a two-bedroom layout, try to position the utility room between the living area and one of the bedrooms, or between the bathroom and a bedroom. Do not just box them in with drywall; you need to ensure code-compliant clearance (usually 30 to 36 inches of working space) for technicians.
You also need to think about access panels. I once saw a beautiful basement renovation where the main water shut-off valve was completely drywall-ed over. When a pipe burst, they had to smash the wall open. Map out every shut-off valve and clean-out cap before framing begins.
Designer’s Note: Noise Control
Mechanical rooms breathe. They need air intake, and they generate a hum. Do not use a hollow core door for this room. Use a solid core door and weatherstrip the perimeter. I also recommend lining the inside walls of the utility room with Rockwool Safe’n’Sound insulation. It creates a noticeable difference in the acoustic comfort of the adjacent bedrooms.
Common Mistakes + Fixes
Mistake: Putting a bedroom wall right up against the furnace plenum.
Fix: Build a double stud wall with an air gap in between to decouple the vibration of the HVAC system from the bedroom wall. It loses you 5 inches of floor space but saves your sanity.
4. Use Soffits to Define Zones, Not Just Hide Pipes
Ceiling height is the luxury currency of basements. If you have 8-foot ceilings, you are golden. If you have 7-foot ceilings, every inch matters. The problem is that basements are full of duct trunks and plumbing pipes that hang below the joists.
The amateur approach is to drop the entire ceiling height to match the lowest pipe. This makes the whole basement feel claustrophobic. The pro approach is to box out only what is necessary (creating soffits) and leave the rest as high as possible.
In a two-bedroom layout, use these soffits strategically to define the rooms. For example, a soffit running around the perimeter of the living room can act as a frame, making the higher center ceiling feel like a tray ceiling feature. You can even tuck LED strip lighting into the lip of the soffit to wash the ceiling with light, making it feel higher.
Rules of Thumb for Low Ceilings
- Lighting: Do not use pendant lights or chandeliers if the bottom of the fixture will be lower than 6’8″ from the floor. Stick to recessed cans or flush mounts.
- Furniture Scale: Buy “apartment scale” furniture. Look for sofas with low backs (under 30 inches high). Low-profile furniture increases the perceived vertical space between the top of the furniture and the ceiling.
- Curtains: Mount curtain rods in the bedrooms all the way up against the ceiling or soffit, not right above the window frame. This draws the eye up and exaggerates the height.
5. Strategic Storage and Closet Placement
In a basement, moisture and humidity are constant concerns. This affects how we design closets. In a typical upstairs bedroom, you might push a closet against an exterior wall. In a basement, I advise against this if possible. Exterior corners in basements are prone to condensation because of the temperature difference between the frozen ground and the heated interior.
If you pack a closet full of clothes against a cold exterior foundation wall, you reduce airflow and invite mold. Try to place your closets on interior partition walls. This serves a dual purpose: it protects your clothes from potential moisture issues, and the closet full of hanging clothes acts as an incredible sound barrier between rooms.
For a two-bedroom layout, place the closets along the shared wall between the two bedrooms. If the bedrooms are side-by-side, build the closets back-to-back. This creates nearly two feet of sound buffering between the sleeping zones, which is essential for privacy.
What I’d Do in a Real Project
- I would install wire shelving or adjustable systems rather than built-in wood cabinetry inside the closets. Wood sitting on a concrete floor can wick up moisture.
- I would ensure the closet doors are sliding or bi-fold if the rooms are small (under 10×10 feet). Swing doors eat up too much floor space and can conflict with nightstand placement.
- I would run a dehumidifier drain line directly to the floor drain in the utility room so the homeowners never have to manually empty a water bucket.
Final Checklist
Before you finalize your floor plan or frame a single wall, run your design through this “livability” filter. These are the boxes I check for every client project.
- Egress Verification: Do both bedrooms have a window with a clear opening of at least 5.7 sq ft?
- Ceiling Height Check: Is the finished ceiling height at least 7 feet in habitable spaces (or whatever your local code mandates)?
- Furniture Clearance: Have you drawn a King or Queen bed in the room to ensure you have 30 inches of walking path around the sides?
- Bathroom Access: Can you get from the bedrooms to the bathroom without walking through a “wet zone” (like the entryway where shoes are kept)?
- Natural Light Path: Are the bedroom doors positioned to let light spill into the hallway or living room when open?
- Plumbing Logic: Is the new bathroom located near the existing main stack to avoid expensive concrete trenching?
FAQs
Can I put a bedroom in a room with no windows?
No. You cannot legally call it a bedroom, and it is unsafe. You can use it as a media room, gym, or office, but you cannot install a closet and list it as a bedroom for resale. It is a fire trap.
What is the best flooring for a basement layout?
Luxury Vinyl Plank (LVP) is the industry standard for basements. It is waterproof, thin (saving ceiling height), and durable. Avoid solid hardwood as it expands and contracts too much with basement humidity. Carpet is cozy but risky if you ever have a minor flood or sump pump failure.
How small can a basement bedroom be?
While code often allows for rooms as small as 70 square feet, practically speaking, a functional adult bedroom needs to be at least 9×10 feet (90 sq ft) to fit a Queen bed and a dresser comfortably. If you are fitting two bedrooms, aim for 10×11 feet as a target.
Should I use a drop ceiling or drywall?
Drywall looks more high-end and residential. Drop ceilings (acoustic tiles) are practical for accessing pipes, but they scream “office” or “basement.” I recommend drywall for the finish, but install access panels at crucial junction points (water shut-offs, cleanouts, electrical boxes).
Conclusion
Fitting two bedrooms into a basement is about respecting the constraints of the structure while maximizing the flow of the remaining space. It requires you to prioritize safety (egress) and comfort (light and sound) over just fitting pieces into a puzzle.
When done correctly, a two-bedroom basement layout adds immense value to your home. It can serve as a guest wing for visiting family, a rental unit for extra income, or a private retreat for teenagers. The key is to stop treating it like a basement and start treating it like an apartment. Use quality finishes, prioritize lighting, and ensure the layout flows naturally around the mechanical obstacles rather than being blocked by them.

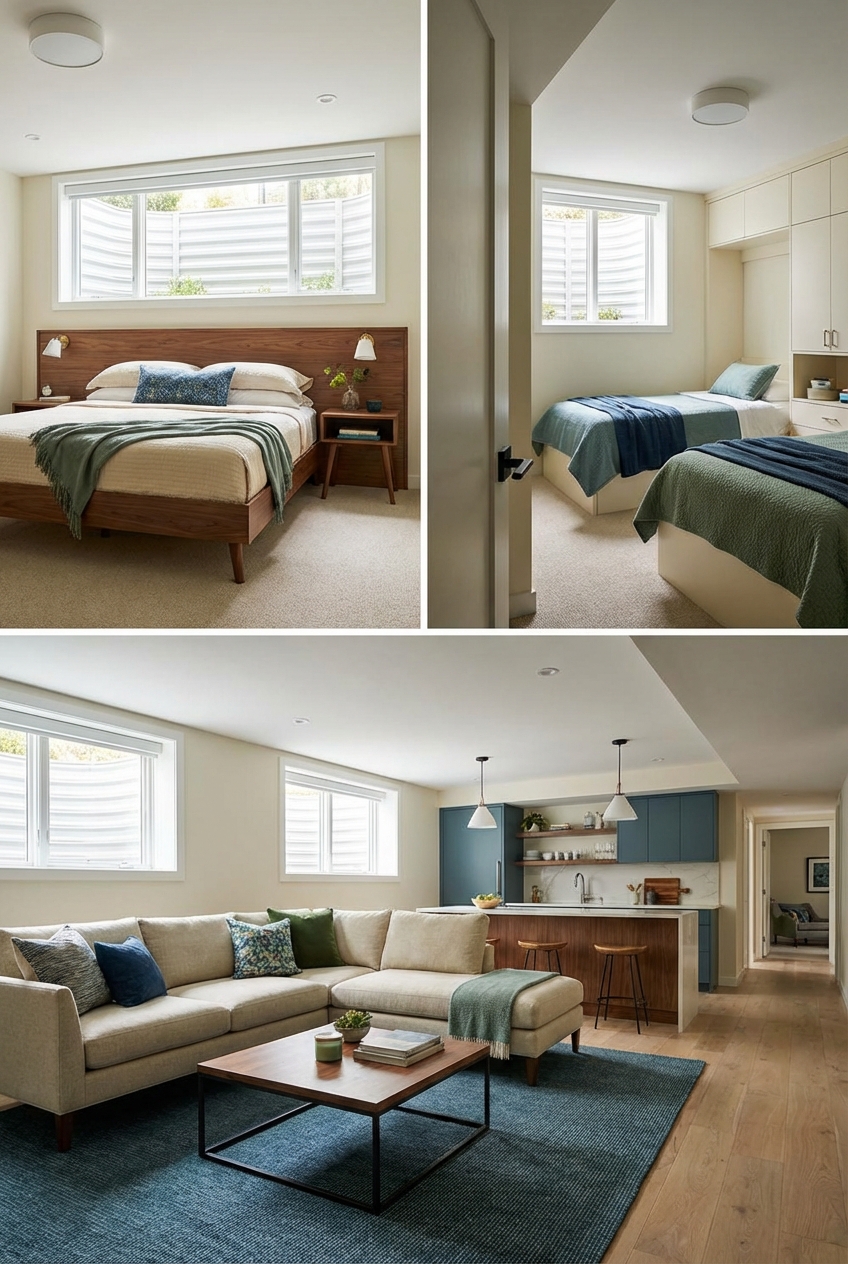

Picture Gallery
